Flush Mount Deck Plate Range - Barton

Product Description

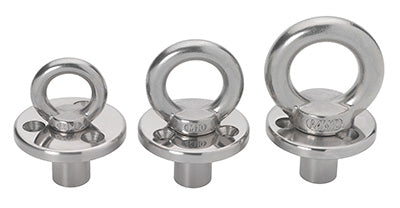

Introducing the flush mount deck plate with fixing eye. Turned from solid bar 316 stainless steel with a highly polished finish, the deck plates are offered in three standard metric thread sizes - M8, M10 and M12, each supplied with a stainless steel blanking plug.

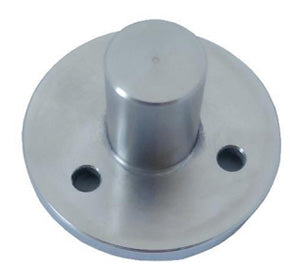

Designed to be mounted flush with the deck using three fixing bolts, the sealed internal thread prevents water ingress, the design prevents trip hazards onboard when not in use. The range allows for a multitude of uses, to include: Temporary fixing eyes, boat tie downs, deck mounted boarding ladders, stand up blocks, davit mounts, life raft holders, dive tanks.

All our deck plates feature a Universal metric thread.

Diameter Overall 1.97" (50mm)
Spigot Depth 0.87" (22mm)
Spigot Diameter 0.67" (17mm)
SWL M8 @ 4,100lbs - 2000kg
M10 @ 4950lbs - 2250kg
M12 @ 5500lbs - 2500kg



Part No
60360 Deck plate with M8 fixing eye c/w blanking plug
60361

Deck Plate with M10 fixing eye c/w blanking plug

60362      Deck plate with M12 Fixing eye c/w Blanking plug

Size
$119.00
