LED NAVIGATION LIGHT - OP5000 - Tri-Color, Anchor, Strobe Light - “AMAZÔNIA 5” Compact 5 in 1 - Classic

5 IN 1: Tri-color Navigation light, Anchor light, Emergency Strobe, Switches on-off automatically: at dawn at night and during storms or fog and Bi-Dimensional VLE System.

 OPTOLAMP New line

The assembly of the electronics is similar to that used in the Military and Aerospace area: it is absolutely reliable.

GLOBAL WARRANTY: 3 YEARS

NEW "AMAZÔNIA 5"
VLE System now with two functions: 1-High Light Emission up to 4.2NM for Aerial Rescue. 2-In the Navigation Light function, the VLE System will adjust its intensity accordingly to illuminate only the Wind indicator on the top.
LS: New high sensitivity light sensor.
Sector 4: The optical system upgrade for the traditional bi-dimensional OPTOLAMP^® lens, enables precise focusing.
OPTION: Amazônia 5 Aluminum: to replace previous Optolamp models. Simple installation without modifications (aluminum base).

RFI/EMI: absolutely FREE.

  TDPS Pro System - safe signalization: even if there is a defect in the system, the safety of the boat will always be maintained (it TDPS System acts as a second lamp in the event of a system failure).
Note: TDPS Pro System is an exclusive Optolamp characteristic.

Ultra Low Consumtion – UBC^® - First Integrated LED Light in the market.
ABSOLUTE SAFE SIGNALIZATION: MAXIMUM LIGHT INTENSITY WITH DISCHARGED BATTERIES. DRAWS 18 TIMES LESS ENERGY.

Amazônia model Versions:

Amazônia 5 "Classic" Version: 4 wires are needed for: Tricolor, Anchor and Strobe Light. Standard Installation with the original boat panel switches.

Amazônia 5 "SW" Version: Only 2 wires for: Tricolor and Anchor Light; or 3 wires to add Strobe Light function. This version use a mode 3 positions selector: standard switch ON-OFF-ON, or the Optolamp^® SW3 Accessory (Not provided).

Description:
Simple Installation: Base in Delrin block. Waterproof (IP 67), connector (Optional Optolamp^® Accessory: C4 -Not provided).
OPTION: Amazônia 5 Aluminum: to replace previous Optolamp models. Simple installation without modifications (aluminum base).
It can work up to 40 nights with a 12V/75A battery without recharge it.
Consumes 18 times less energy.
Show the Top Wind Indicator.
Total resistance against mechanic stress.
Warranty HE: 3 years.
Patented.

Specifications:

Weight: 225 gr

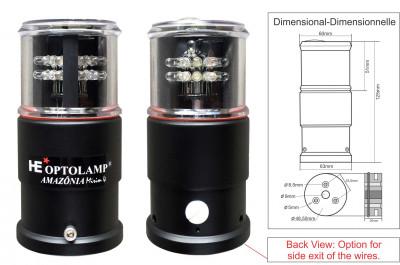

Height: 125 mm.
Diameter: 60 mm.
Base: Delrin block, very fast installation.
Power source: 10,6V to 14,4V.
Option 24V: V1830 Optolamp Converter -Not provided.
Consumption UBC^®: 0,126A to 0,155A.
Horizontal range: minimum 2,2 NM.
In accordance with the COLREG Norms.
Vertical range VLE system: up to 4,2 NM.
Switches on-off automatically: at dawn at night and during storms or fog.
LED life: minimum 50000 hs.

Accessories:

-Optolamp^® Box Switch S-310 -Not provided.
-Optolamp® SW3 Accessory: For Amazônia Mirim 5 > SW version -Not provided.
-Waterproof (IP 67), connector C4 Optolamp^® Accessory -Not provided.
-New Electronic 24V Converter V1830 -Not provided.

OPTOLAMP^® signalization products do not cause RFI-EMI interference on the boat equipment.

Optolamp and the Ecology:

Some materials used in different manufacture parts of our products are originally in the market, our ecological policy is to avoid greater consumption of raw material, energy and matrix tools.
