Product Description

Dinghy, catamarans and sportsboats 8 to 12 m (26 to 40 ft).

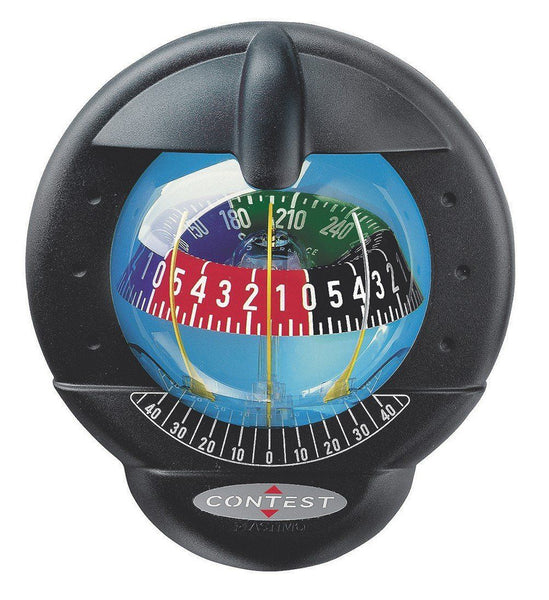

The racing version of the legendary Contest 101, with a tactical card.

Combines the functions of :

Main steering compass, from card horizontal surface. Course is read from the lubber lines mounted in the lower part of the bowl

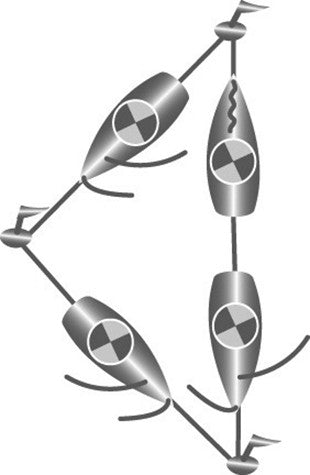

Tactical compass, from card vertical section (direct reading). Tactician-crew only needs to memorise one figure for the 3 legs of an olympic course.

CONTEST® 101Boat sizeSailboats and racing dinghies 8 m and above (26 ft +) Double readingFrom cockpit and cabin.Compass card

Double graduation : horizontal and vertical.
Tactical conical card, graduated every 5°, apparent Ø 100 mm.

Mounting
Comes as standard in a bulkhead version.
Can be mast-mounted with the addition of optional mast-mounting kit.
Lubber lines3 lubber lines, at 45°.
Heelmeter Graduated every 10°.
CompensationOptional.
Lighting12-24 V LED.
Supplied withProtection cover, drilling template, back flange for neat installation from cabin sideHomologationISO 25862 compliant

Assembly is totally watertight

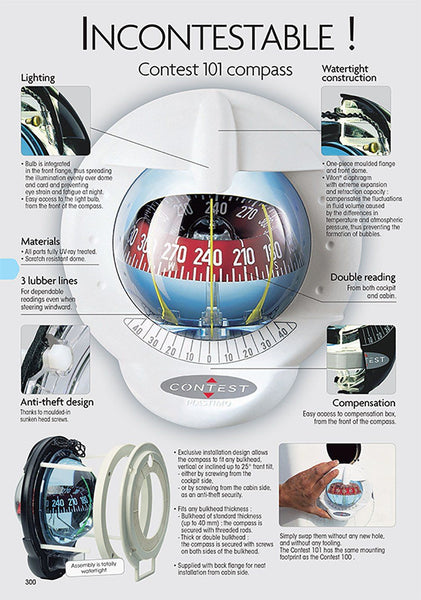

• Exclusive installation design allows the compass to fit any bulkhead, vertical or inclined up to 25° front tilt.
• Fits any bulkhead thickness :
- Regular bulkhead thickness (up to 40 mm) : compass is secured with threaded rods.
- Thick or double bulkhead : compass is secured with screws on both sides of the bulkhead.

Materials
• All parts fully UV-ray treated.
• Scratch resistant dome.
