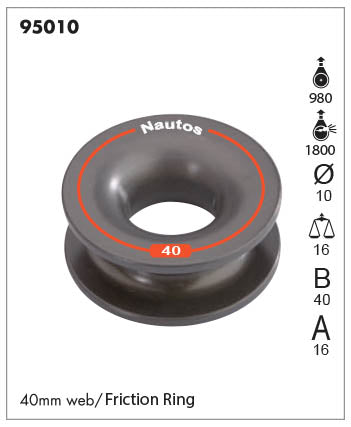

95010 - Friction Sheave - 40 MM SHEAVE- WEB - TIE SHEAVE - CONTROL LINE EYE

Previous Product | Next Product
Product Description

CONTROL LINE EYE

WORKING LOAD 2200 LBS
BREAKING LOAD 4000 LBS
MAX LINE 10 MM ~ 3/8"
WEIGHT 0.6 OZ
Inner Diameter 16mm

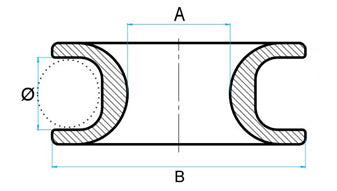

Sizes on chart are in Kg, mm and Grams

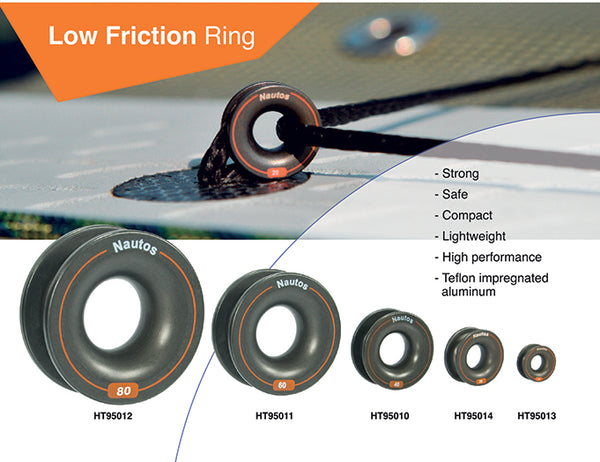

NAUTOS LOW FRICTION RING

The high strength of the aramid ropes lead to an entire new universe of applications, starting as simple “soft shackle” to complete tackle systems with gigantic gains in weight and cost. To improve this new applications Nautos is producing a range of “attachment rings” that together this current rope technology creates new high performance applications  Machined from 6061 alloy and teflonised hard-coated super slippery surface this rings allows infinite combinations specially were peak loads are the rule like backstays, cascade vangs, barbers and more.



$12.00
