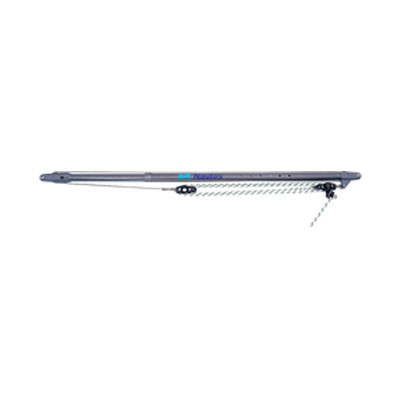

91334 TELESCOPING VANG #2 INTERNAL RELATION 4:1

Previous Product | Next Product

Product Description

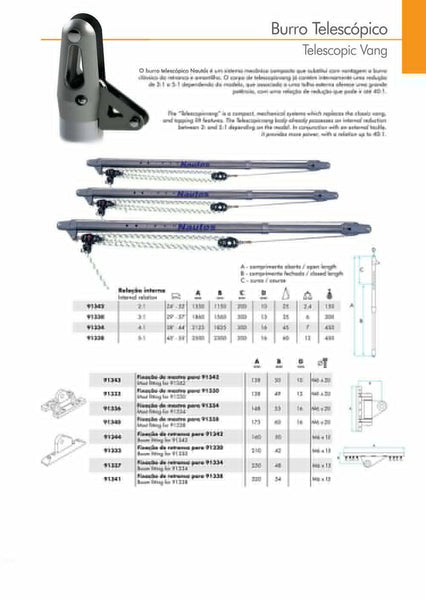

THE "TELESCOPICVANG" IS A COMPACT, MECHANICAL SYSTEM WHICH REPLACES THE CLASSIC VANG, AND TOPPING LIFT FEATURES. THE TELESCOPICVANG BODY ALREADY POSSESSES AN INTERNAL REDUCTION (BETWEEN 3: AND 5:1 DEPENDING ON THE MODEL). IN CONJUNCTION WITH AN EXTERNAL TACKLE, IT PROVIDES MORE POWER, WITH A RELATION UP TO 4:1, MAKING IT AN ECONOMICAL AND VIABLE ALTERNATIVE TO HYDRAULIC SYSTEMS. THE STAINLESS STEEL SPRING ALLOWS FOR THE BOOM TO BE POSITIONED AT THE IDEAL HEIGHT SUBSTITUTING THE TOPPING LIFT. THIS FACILITATES THE REEFING MANEUVERS, ELIMINATING THE NEED FOR AN ADDITONAL OPERATION.

RECOMMENDED FOR BOATS IN BETWEEN 38 TO 44 FEET LENGHT

OPEN LENGTH 2125 MM

CLOSE LENGTH 1825MM

PIN DIAMETER 16MM

COURSE 300MM

WEIGHT 7 KGS
