CL222 Racing Mini - ClamCleat -

Previous Product | Next Product
Product Description

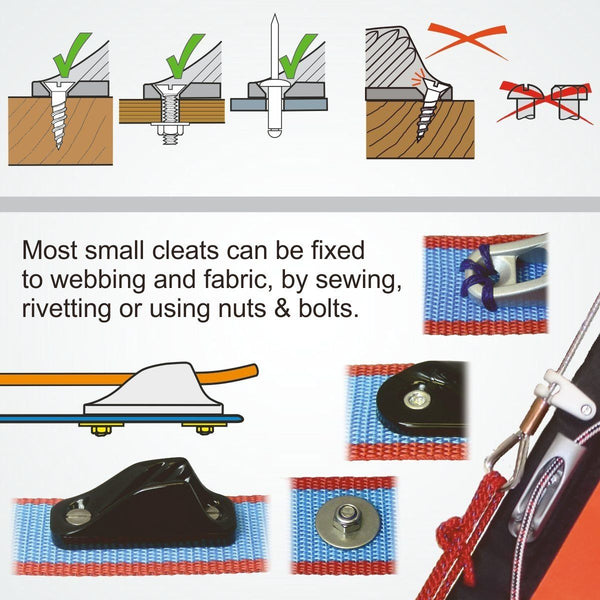

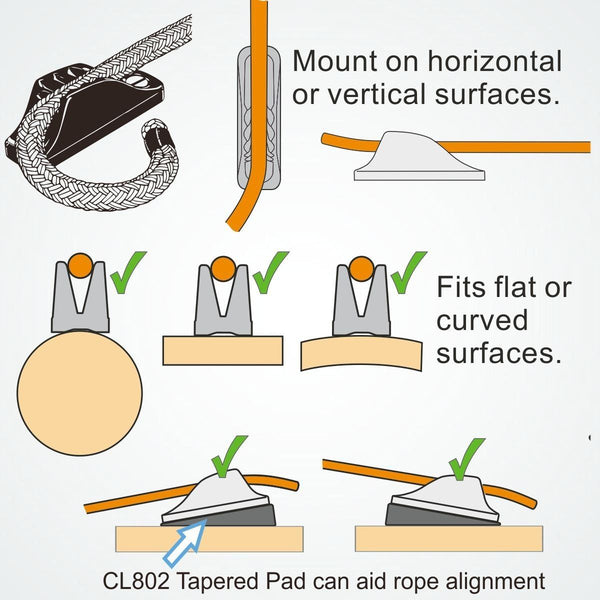

Clamcleat® CL222 is an elegant design in aluminium with a silver or hard anodised fiinish. The rope drops down into the teeth. It can be fitted to all flat and curved surfaces, using rivets, countersunk (flathead) screws or bolts. CL222 can also be sewn, riveted or bolted onto webbing or fabric. -see downloads tab.

CL222 is available in : Silver

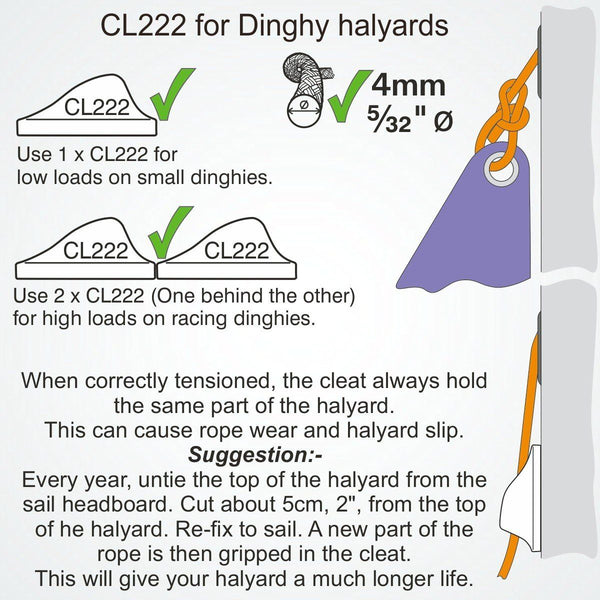

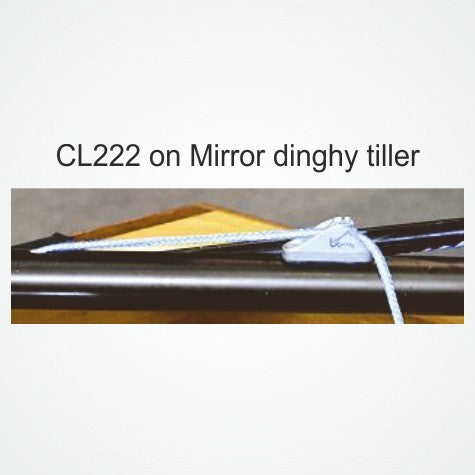

The CL222 has many uses on sailing dinghies, such as control lines and halyards. The downlaods tab has a leaflet about using the CL222 for dinghy halyards.



Technical Details   Metric Imperial
Rope Diameter 3 - 6mm 1/8 - 1/4"
Material Aluminium Aluminium
Hole Centres 36mm 1 7/16"
Length 48mm 1 7/8"
Width 15mm 19/32"
Height 21mm 13/16"
Bolt Size M4 #8-32. 5/32"
Screw Size 4.2 No 8
Weight 16gms 0.6oz
$10.90
