CL230 Racing Junior MK1 with Roller

Previous Product | Next Product
Product Description

The bottom roller of the Clamcleat® CL230 allows ropes to enter the cleat from below. Ideal for bringing a rope through a surface.  Can also be rigged on a rope for 1:1 or 2:1 advantage.

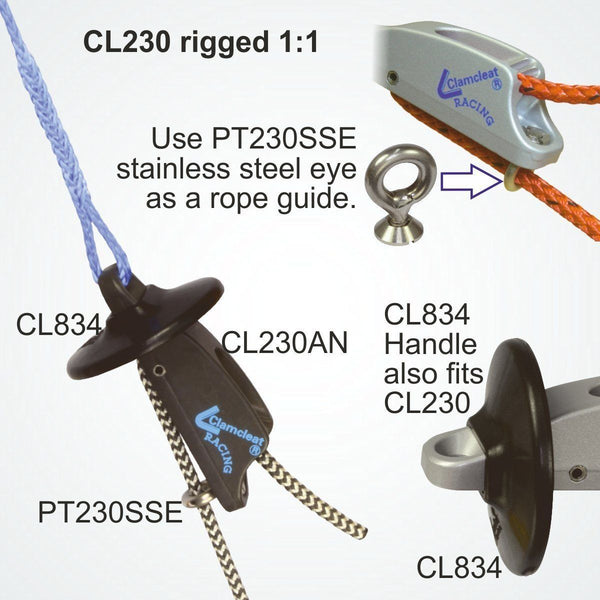

Video of 1:1 advantage - see below in video tab.

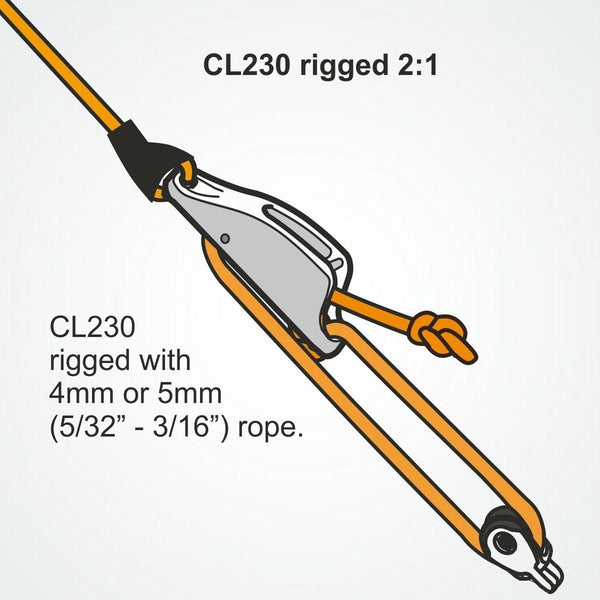

Video 2:1 advantage: https://www.youtube.com/watch?v=IPKINKHvPig

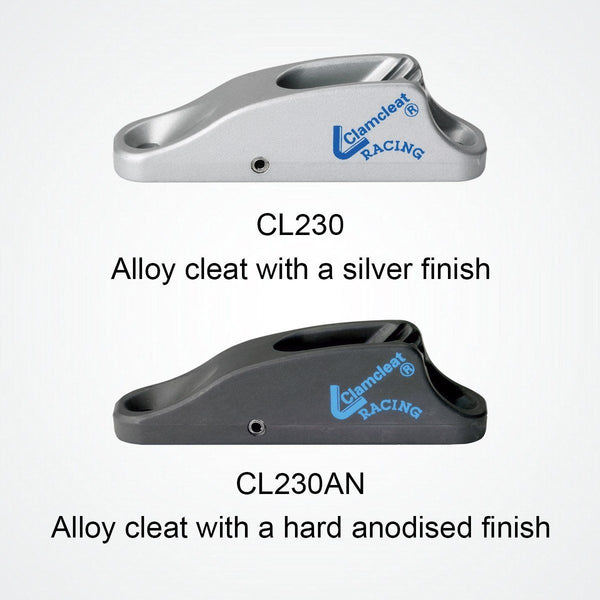

Available  finishes:
- CL230 has a silver stove enamel finish for a cost effective, high quality coating.

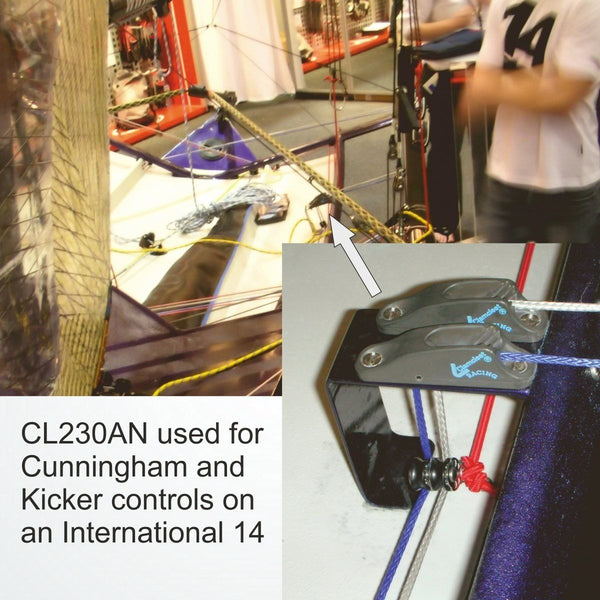

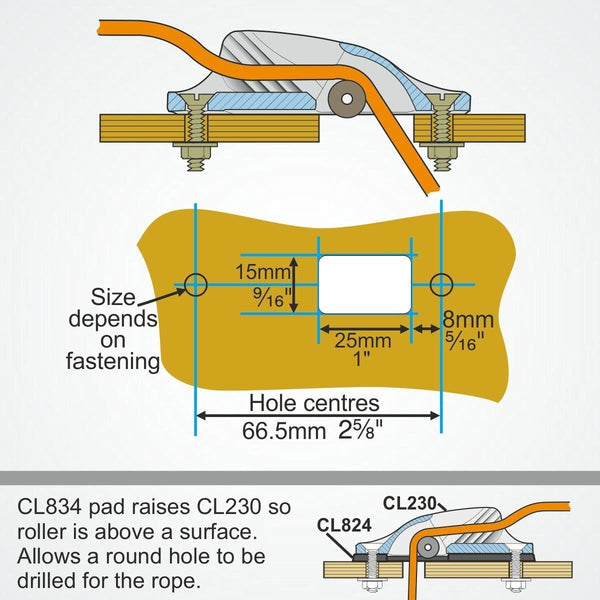

CL230 is ideal for through-deck and through-mast applications.  Images show it being used for Cunningham and Kicker controls on an International 14 dinghy. Also for tensioning the sunshade on the Wajer 38 powerboat. The CL824 pad can be used to raise CL230 so roller is above a surface. Allows a round hole to be drilled for the rope.

CL230 Racing Junior MK1 with Roller
Technical Details   Metric Imperial

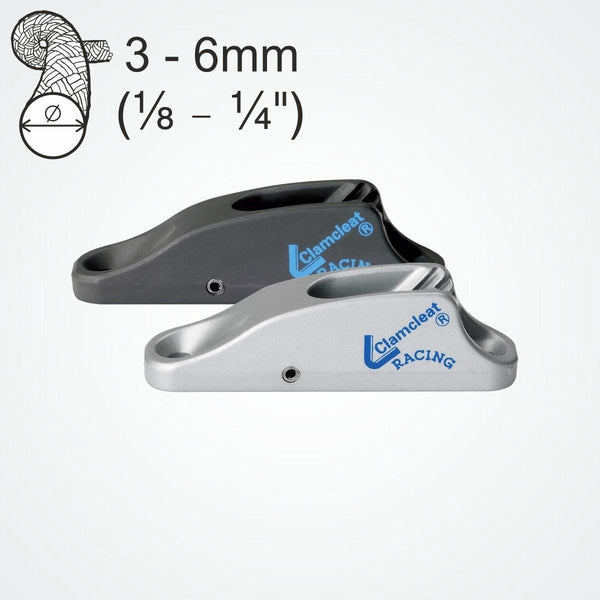

Rope Diameter 3 - 6mm 1/8 - 1/4"
Material Aluminium Aluminium
Hole Centres 66mm 2 5/8"
Length 82mm 3 1/4"
Width 18mm 11/16"
Height 23mm 15/16"
Bolt Size M5 #10-24. 3/16"
Screw Size 4.8 No10
Weight 35gms 1.2oz
$19.44
